| LINA | 22226EAE4 |
| STAN | HPS | Standard |
| ORDER | 22226EAE4 | 制造商型号 |

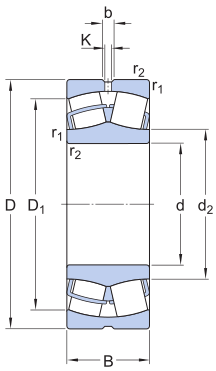

| SD | 130mm | 内径 |
| D | 230mm | 外径 |
| B | 64.0mm | 宽度 |
| R | 3.0 mm | 最小倒角尺寸 |
| CR1 | 820000[N] | 基本额定动载荷 |
| COR1 | 940000[N] | 基本额定静载荷 |
| LT | 2800[rpm] | Thermal rated speed /Allowable maximum speed |
| LM | 2600[rpm] | Mechanical limit speed /Allowable maximum speed |
| LG | 2200[rpm] | 脂润滑极限转速 |
| LO | 2600[rpm] | 油润滑极限转速 |

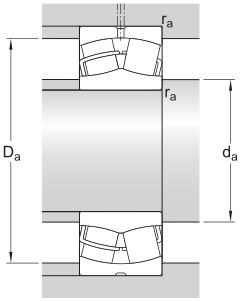

| DA1 | 144 mm | Abutment and Fillet Dimensions min. |
| DA2 | 152.000 mm | Abutment and Fillet Dimensions max. |
| DA3 | 216 mm | Abutment and Fillet Dimensions max. |
| DA4 | 204 mm | Abutment and Fillet Dimensions min. |
| RA | 2.5 mm | Abutment and Fillet Dimensions max. |
| E | 0.26 | Constant |
| Y2 | 3.8 | Axial load factors |
| Y3 | 2.6 | Axial load factors |
| Y0 | 2.5 | Axial load factors |
| MASS | 11.00[kg] | 轴承质量 |
