| LINA | 51209 |
| ORDER | 51209 | 制造商型号 |

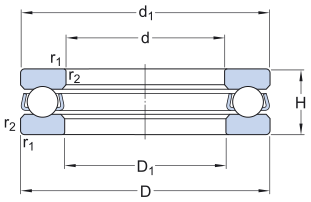

| SD | 45mm | 内径 |
| D | 73mm | 外径 |
| T | 20mm | 宽度 |
| SR | 1.0 mm | Chamfer Dimension min. |
| CAN | 48000[N] | Basic Load Ratings |
| COAN | 105000[N] | Basic Load Ratings |
| CA | 4900[kgf] | Basic Load Ratings |
| COA | 10700[kgf] | Basic Load Ratings |
| GRE | 2600[min^-1] | Limiting Speeds (Grease) |
| OIL | 4000[min^-1] | Limiting Speeds (Oil) |
| SD1 | 73 mm | Outside Diameter |
| D1 | 47 mm | Outside Diameter |

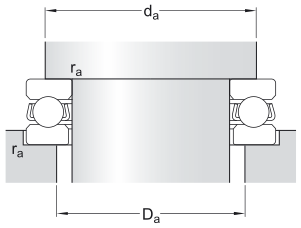

| SDA | 62 mm | Abutment and Fillet Dimensions min. |
| DA | 56 mm | Abutment and Fillet Dimensions max. |
| SRA | 1.0 mm | Abutment and Fillet Dimensions max. |
| MASS | 0.310[kg] | 质量 |
