| LINA | 52222 |
| ORDER | 52222 | 制造商型号 |

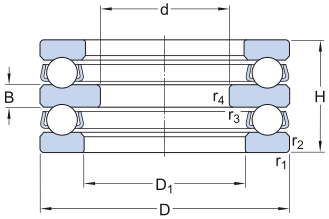

| SD2 | 95 mm |
| SD | 110mm | 内径 |
| D | 160mm | 外径 |
| T1 | 67mm | 宽度 |
| SR | 1.1 mm | Chamfer Dimension min. |
| SR1 | 1.0 mm | Chamfer Dimension min. |
| CAN | 136000[N] | Basic Load Ratings |
| COAN | 395000[N] | Basic Load Ratings |
| CA | 13900[kgf] | Basic Load Ratings |
| COA | 40000[kgf] | Basic Load Ratings |
| GRE | 1200[min^-1] | Limiting Speeds (Grease) |
| OIL | 1800[min^-1] | Limiting Speeds (Oil) |
| SD3 | 160.0 mm | Outside Diameter |
| D1 | 113 mm |
| T2 | 41.0mm | 宽度 |
| B | 15mm | 宽度 |

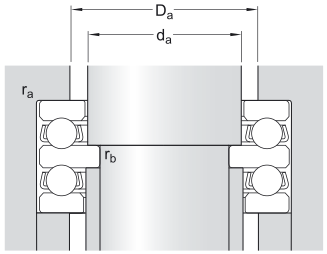

| DA | 135 mm | Abutment and Fillet Dimensions min. |
| SRA | 1.0 mm | Abutment and Fillet Dimensions max. |
| SRB | 1.0 mm | Abutment and Fillet Dimensions max. |
| MASS | 4.390[kg] | 质量 |
