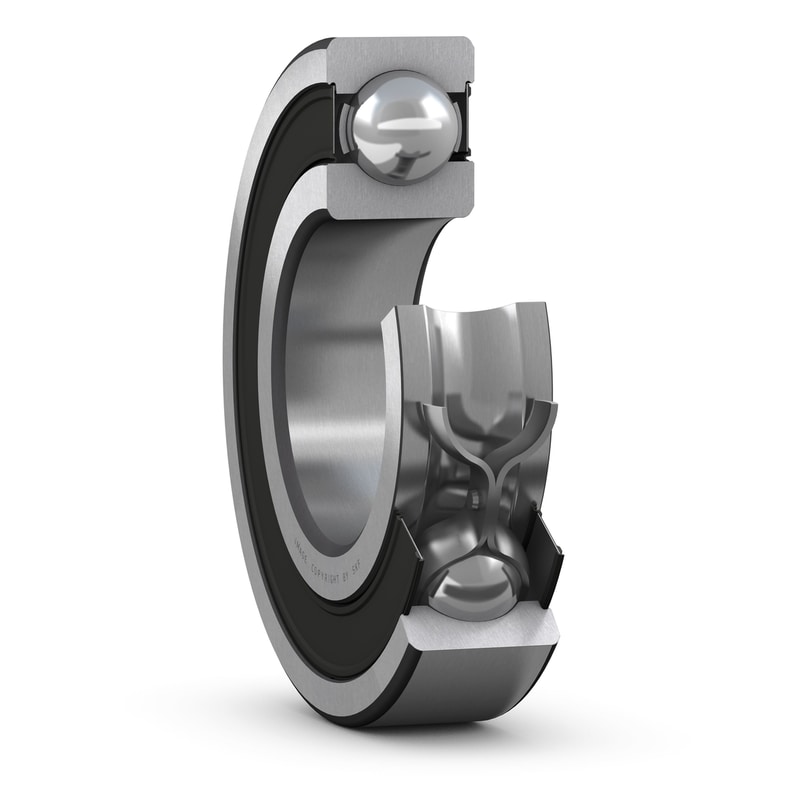

图片仅供参考，以实物为准
| LINA | 6306DDU |
| STAN | Standard |
| ORDER | 6306DDU | 制造商型号 |
| SD | 30mm | 内径 |
| D | 72mm | 外径 |
| B | 19mm | 宽度 |
| R | 1.1 mm | 最小倒角尺寸 |
| CR1 | 26700[N] | 基本额定动载荷 |
| COR1 | 15000[N] | 基本额定静载荷 |
| FO | 13.3 | 计算系数 |
| LG | 6700[rpm] | 脂润滑极限转速 |
| DAM1 | 36.5 mm | Abutment and Fillet Dimensions min. |
| DA1 | 42.5 mm | Abutment and Fillet Dimensions max. |
| DA2 | 65.5 mm | Abutment and Fillet Dimensions max. |
| RA | 1.0 mm | Abutment and Fillet Dimensions max. |
| MASS | 0.345[kg] | 轴承质量 |
