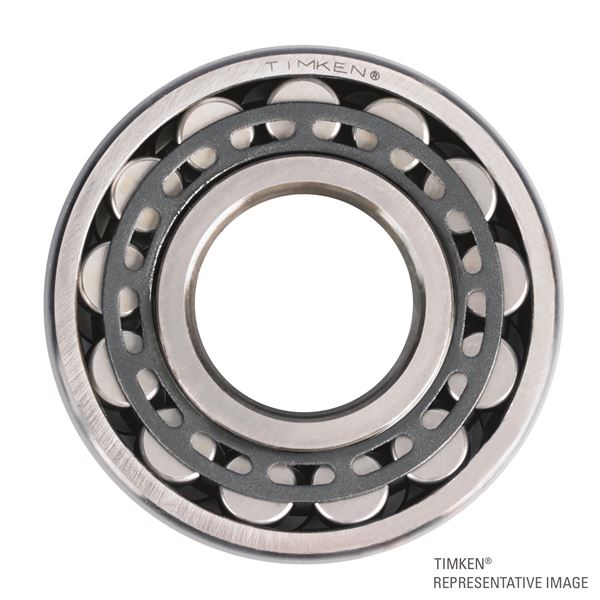

图片仅供参考，以实物为准
| Design Unit | METRIC | 设计单位 |
| Cage Type | EJ | 保持架类型 |
| UPC Code | 087796023758 | 商品条码 |
| Cage Material | Steel | 保持架材料 |
| Superseded Part | 22310CJW33C3 | 替代型号 |
| d | 50.00mm1.9685in | 内径 |
| D | 110.00mm4.3307in | 外径 |
| B' | 40 mm 1.5748 in | 内圈宽度 |
| B | 40.00mm1.5748in | 宽度 |
| R | 2.0 mm 0.080 in | 内圈倒角尺寸 |
| r | 2.0 mm 0.080 in | 外圈倒角尺寸 |
| da | 65.00 mm 2.600 in | 轴挡肩最小直径 |
| Da | 98 mm 3.900 in | 轴承座挡肩最大直径 |
| C0 | 241000 N 54200 lbf | 基本额定静载荷 |
| C1(2) | 238000 N 53500 lbf | 基本额定动载荷 |
| e | 0.36 | ISO Factor3 |
| Y0 | 1.85 | ISO Factor4 |
| Y1 | 1.89 | ISO Factor5 |
| Y2 | 2.81 | ISO Factor6 |
| ner | 4600 | 参考转速 |
| nG | 5500 | 极限转速 |
| Cg | 0.0549 | Geometry Factor8 |
| 1 Maximum housing fillet radius that bearing corners will clear. |
| 2 Maximum shaft fillet radius that bearing corners will clear. |
| 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| 4 These factors apply for both inch and metric calculations. See engineering |
| 5 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| 6 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. |
| 7 See thermal speed ratings in the engineering section. |
| 8 Geometry constant for Lubrication Life Adjustment Factor a3l. |
